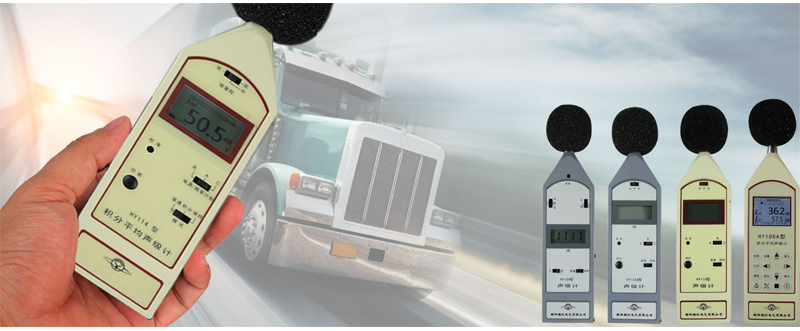

HY114 Series Sound Level Meter
The HY114 Digital sound level meter is designed to measure the frequency density of sound a specific area. The meter is able to display the A sound level and C sound level, This meter conforms with the International standard IEC 651-1979 for Class I requirement, therefore, the application range is wide: for mechanical test, electronic test, vehicle noise test and vehicle horn inspection.
Automatic measurement and data processing of noise can be realized by computer controlled instruments It has good electromagnetic shielding, anti-collision and anti-extrusion functions, and is more suitable for use in high-temperature and high-pollution environments.
Passed the type evaluation test, certificate number: 2019S125-43.
Features
- Easy to operate
- Using advanced digital processing technology, it has the advantages of high reliability, good stability, wide dynamic range, no need to shift gears, etc.
- Suitable for on-site monitoring of environmental noise, machine noise, traffic noise and workplace noise, Also suitable for teaching demonstrations in colleges and universities.
- Battery - powered, small and sturdy structure design, suitable for field use and portable.
HY Model :
Specification
- Measurable : L XF(X=A,C), L XFmax, L XFmin, L Cpeak, 1s L eq, L E , E , D , L eq, 8hn, L N ( N =1, 5, 50, 90, 95, 99), s.
- Measuring microphone : HY205 prepolarized test condenser microphone (level 2), or HY207 prepolarized test condenser microphone (level 1), free-field frequency response, Nominal diameter is 12.7 mm, nominal sensitivity is 50 mV/Pa (nominal sensitivity level is -26 dB, reference value is 1 V/Pa)
- Frequency range : 10 Hz~20 kHz (level 1), 20 Hz ~ 12.5 kHz (2 levels)
- Frequency weighting : A weighting, C weighting
- Time weighting : F (fast)
- Measuring range: The total range of 30 dB ~ 130 dB is divided into three levels: low range, middle range and high range
- Display : 128x64 dot matrix liquid crystal display (LCD), resolution 0.1dB, with overload and under range , low battery voltage and other signs
- Digital output : RS232 serial interface
- Analog output: the output jack is a 3.5 mm two-channel headphone jack, the minimum load impedance is 10 kΩ AC linear voltage: 0.5 V root mean square value (corresponding to the upper limit of each block )
- DC logarithmic voltage: 15 mV/dB, the output voltage has nothing to do with the level range, it is 450 mV ~ 1950 mV in the total range, (that is, it is 1950 mV when the upper boundary of the measurement range is 130 dB, and when the lower boundary is 30 dB 450 mV)
- Power supply : 4 R6P-type (No. 5) batteries; LR6-type battery (refer to environmental conditions, continuous work for 30 h); HY9214-type (nominal value 5V) external power supply
- Dimensions : long x width x thickness 256 x 74 × 25 mm
- Operating temperature range : Class 1 sound level meter: -10°C to 50°C, Class 2 sound level meter: 0°C to 40°C
- Weight : 500g (including battery )
