AutoGas & AutoSmoke

Gas Analyser & Opacity Meter

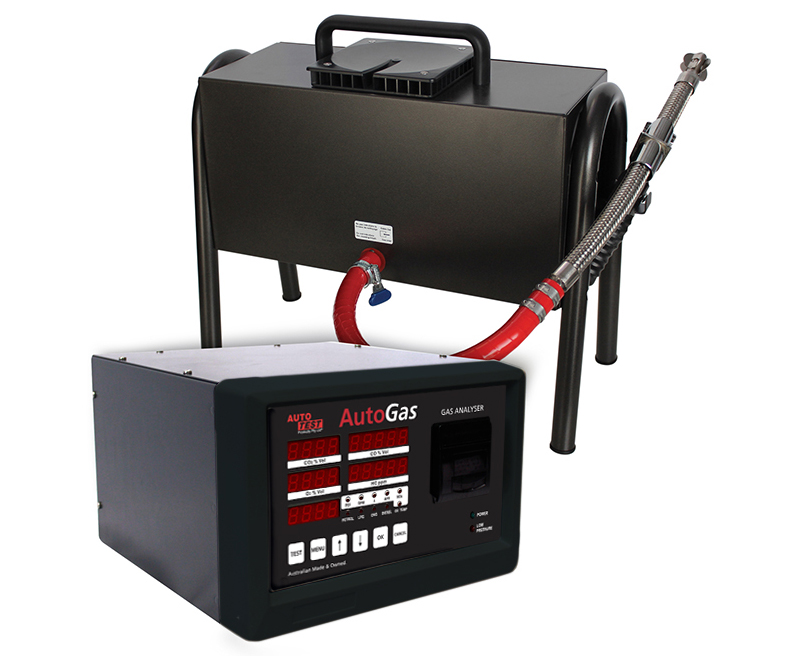

AutoTest’s combined AutoGas® 5 Gas Analyser and AutoSmoke® Opacity Meter are user friendly analysis tools designed to improve how the gas efficiency of a vehicle is measured. Distributed throughout Australia, AutoTest’s AutoGas & 5 Gas Analyser and AutoSmoke & Opacity Meter is suitable for both light and heavy vehicles. Battery operated, they measure the contents of the exhaust gas and lets you know how efficient a vehicle is at reducing the amount of pollutant gases being released into the atmosphere.

The combined device includes a built-in wireless connection between the AutoGas® 5 Gas Analyser and AutoSmoke® Opacity Meter. Smoke tests can be carried out using a PC connected to Gas Analyser, which enables you to easily read measurement data on the screen. Even though the new product itself is simple, it comes with all the required probes, leads and a wireless OBD interface as standard equipment.

Benefits of AutoTest’s AutoGas 5 Gas Analyser & AutoSmoke Opacity Meter:

1. Suitable for Petrol, LPG and CNG diesel engines
2. Capable of measuring CO, HC, CO2, O2 and NOx
3. A comprehensive vehicle emissions testing solution.
4. Complies with the OIML R99 (ISO 3930) Class 0 specification
5. Optional custom made trolley for easy use and storage
6. Compatible with AutoTest’s Bluetooth printer and Printer Paper Pack
7. Distributed through leading distributors, including Bursons, Triple Torque, Collery Deisler and Autoequip Australia

AutoTest’s AutoGas® 5 Gas Analyser and AutoSmoke® Opacity Meter are designed to respond to the growing needs of various systems and networking in the garage business, aimed at improving work efficiencies and level of service provided to car users.

The 5 Gas Analyser and Opacity Meters are part of a large product range of approved equipment offered by AutoTest.

*4 Gas Analyser is also available.

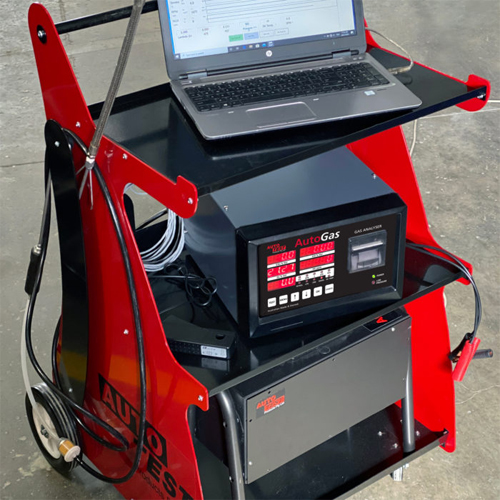

AutoTest Combined Cable-free Smoke Meter & Gas Analyser

1. DVSA approved for Class 4 & 7 MOT testing
2. Suitable for Petrol, Diesel and LPG engines
3. Complies with the OIML R99 (ISO 3930) Class 0 specification
4. Battery powered smoke meter with wireless communication to PC
5. EOBD can be used for RPM & oil temperature measurements
6. Automatic in-use calibration on smoke meter
7. 100% Euro 6 compatible with latest gas update
8. Windows based PC operating system with A4 printer
9. Large 22” flat screen monitor
10. Robust mobile cabinet providing additional storage

Standard Accessories :

1. Sampling probe assembly for gas intake
2. Battery cable assembly
3. Wireless OBD interface
4. Oil temperature probe

Optional Accessories :

1. Accelerometer sensor pick-up
2. Inductive pick-up and cable assembly
3. Gas test software for PC interface
4. RS232 to USB Adaptor
5. Diesel filter for diesel engine testing
6. Optional custom made trolley for easy use and storage

Features for PC based operation:

1. PC software allows for the photograph of vehicle number plate with unique job ID in colour printout.

Optional Features:

1. RPM measurement using accelerometer sensor
2. RPM measurement using inductive pick-up sensor
3. Gas test software for running and storing tests on PC
