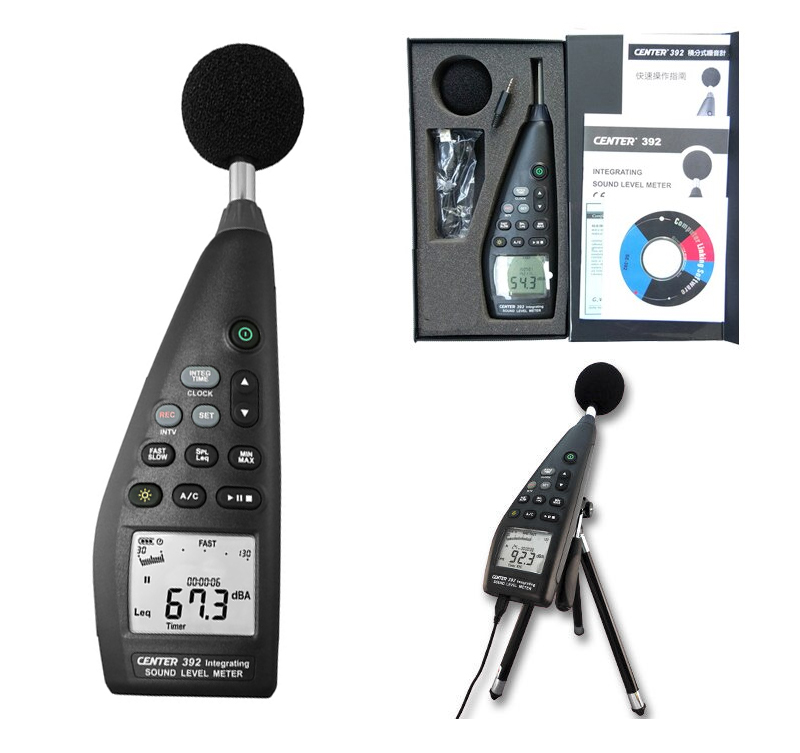

392 Integrating Sound Level Meter

Our advance sound level meter CENTER 392 fully complies with IEC 61672-1 class 2. This meter has only one measuring range and it is extending from 30db to 130db that is full 100db. The operator will not have to worry about which range to use like in the 3 or 4 range models and neither about signal latency in auto range models. This unit is also a data logger and it is equipped with manual storing capability which can store 64,000 Records Data Logger.

Features :

1. Complies with IEC 61672-1 class 2 standard
2. Measures Leq, MaxL, MinL, SPL
3. 64,000 Records Data Logger
4. PC interface
5. With Windows Software
6. AC / DC Signal Output
7. Back-lit display

Standard Accessories :

1. Battery
2. operation manual
3. carrying case
4. windscreen 3.5Ø plug
5. Micro-USB cable
6. CD software
7. Calibrator (optional)

1. Level Range: 30~130dB
2. Accuracy: ±1.4dB (ref. 94dB@1KHz)
3. Frequency Weighting: A / C
4. Time Weighting: Fast, Slow
5. Frequency Range: 20Hz to 8KHz
6. Microphone: ½ inch Electret condenser microphone
7. Measuring Time: 10s, 1m, 5m,10m,15m,30m,1h,8hrs,24hrs
8. Auxiliary Outputs: AC/DC Output
9. Battery: 1.5V AA size battery x 4
10. Dimensions: 272 x 83 x 42 mm
11. Weight: Approx.390g
