Distributor Peralatan Pengujian Kendaraan Bermotor Statis

Axle Play Detector

Joint Play DetectorCosber Model KJX-10 is a Hydraulic play detector used for inspecting the suspension system and steering system's Joint Play condition in a vehicle chassis.

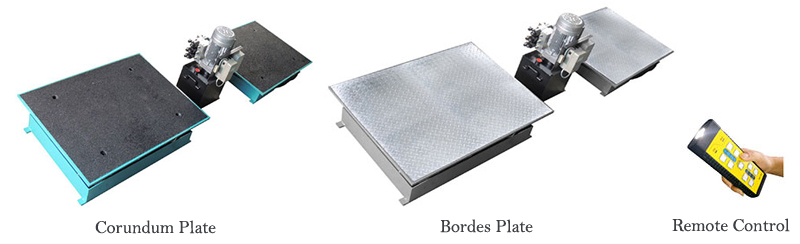

The play detector is made by three parts: 2 movement plates, hydraulic system and electric control system (with handhold remote & torch).

Download [Download]

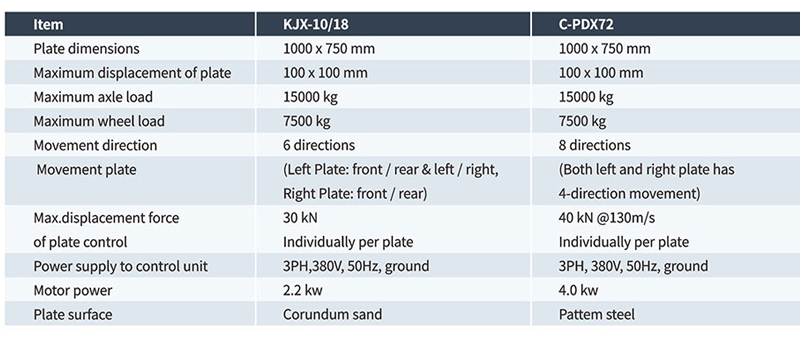

Model KJX- 10
Plate dimensions 1000mm x 750mm
Maximum displacement of plate 100mm x 100mm
Maximum axle load 13.000kg
Maximum Wheel Load 6.500kg
Movement direction 4 directions (Left Plate: front / rear & left / right, Right Plate: front / rear)
Max. displacement force of platen 23kN
Control Individually per platform
Power supply to control unit 3PH 380V / 220 V 50 Hz 10A
Working Environment Temperature 0-50C, Humidity 85%

Hydraulic Station
Motor Vertical Y90L-4 0.75kw 380V
Max Pressure 10Mpa
Max. Flow 3.56L/min
Capacity of Oil tank 10L
Hydraulic oil N46 machine oil (old No. 30# machine oil)


Test plates - single control Plate movement in counter direction (4 ways)

  • axle suspension
    axle stub
    wheel bearing
    tie-rod ends
    stabiliser
    trolley-pivot
    twin-axle suspension
    trailer coupling device
  • Power Supply: 3PH 380V / 220V 50Hz, 10A
  • Choice of test modes via test lamp:
    Easy and convenient operation owing to single-touch mode
    Automatic or manual operation at choice
    Automatic return of test plates into home position (parking position)

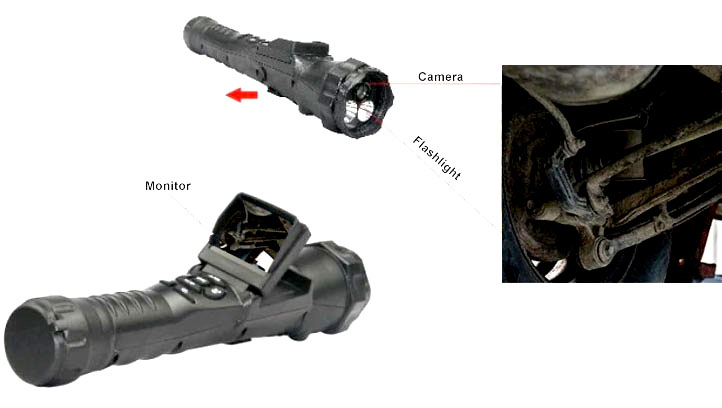

    Test lamp
